Tira cilindra rulŝafto-lagro

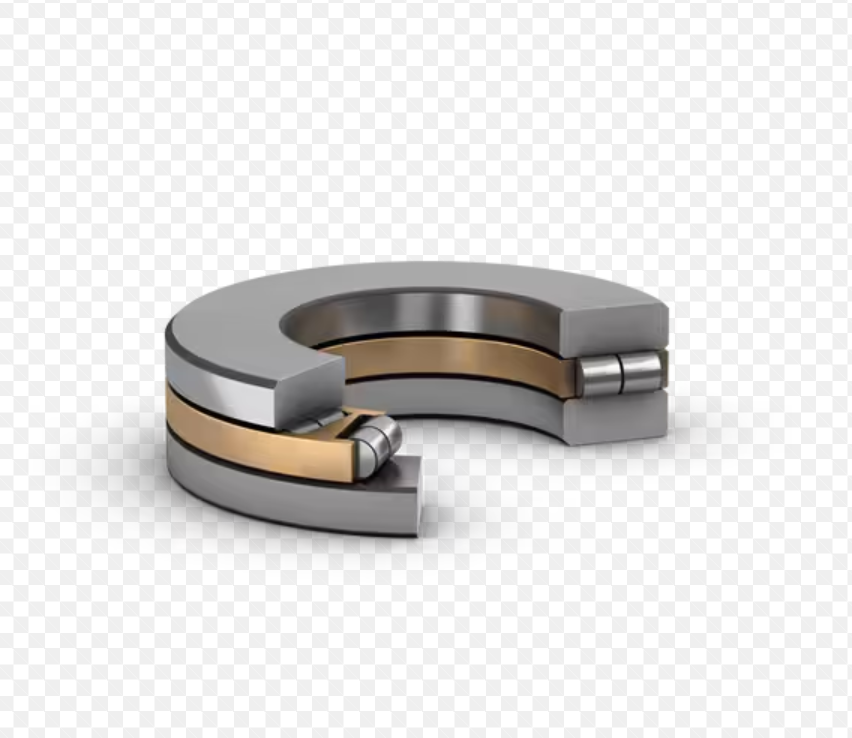

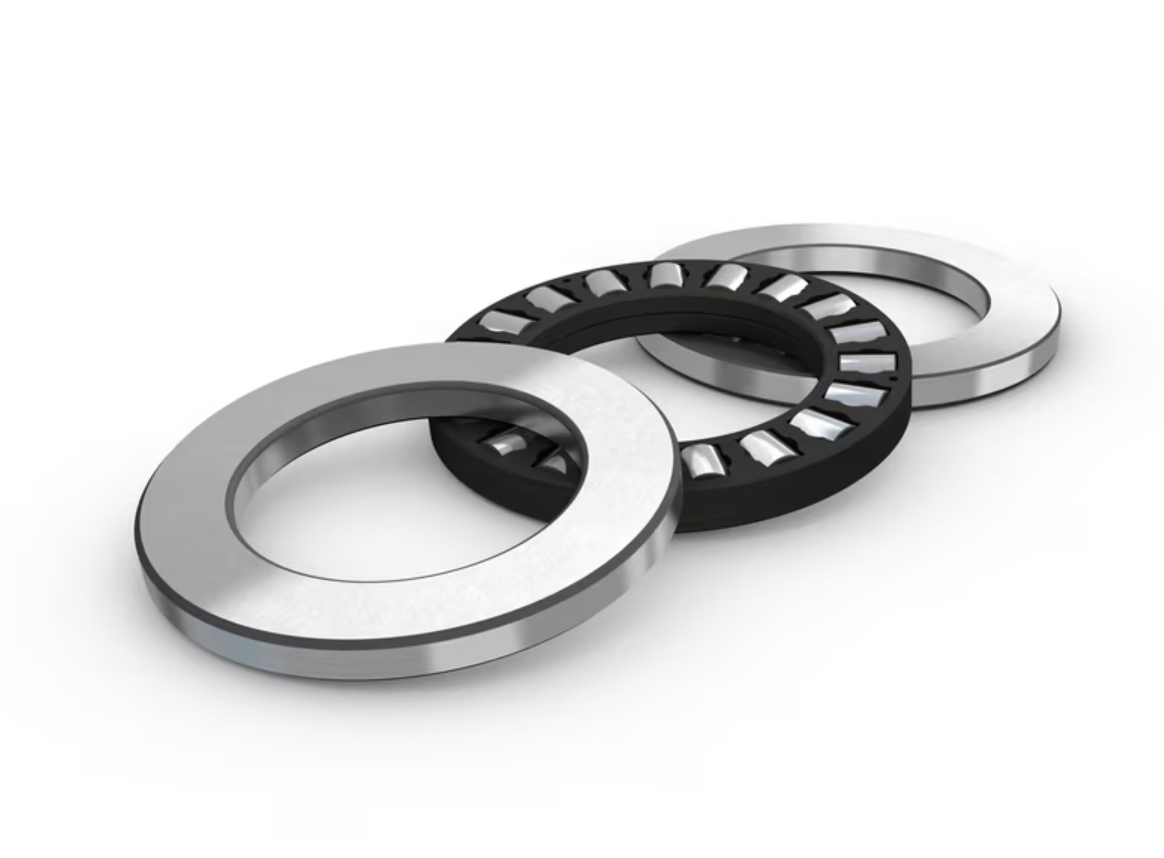

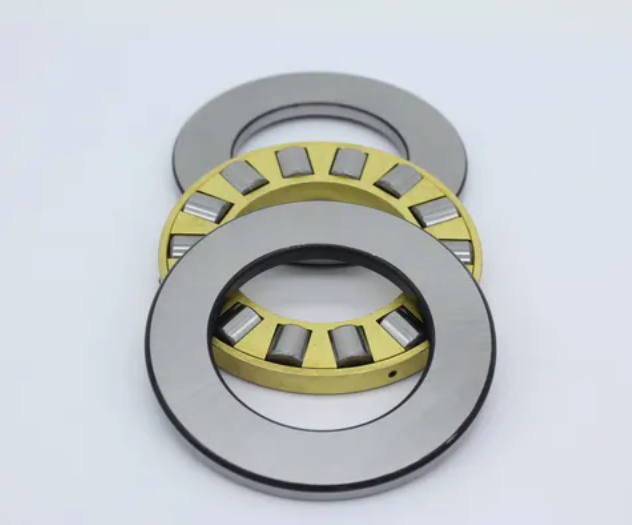

Thrust cylindrical roller bearing is a type of thrust rolling bearing that uses cylindrical rollers as rolling elements. It consists of a shaft ring, a housing ring, thrust cylindrical rollers, and a cage assembly, with the roller and cage assembly being the core component. This bearing is designed to withstand heavy unidirectional axial loads and vibration loads. It does not have self-aligning capability and is often assembled into high-rigidity bearing configurations. Common models include the 811 series, 812 series, 81115, and 81215.

The cage can be made of molded glass fiber reinforced polyamide 66 (TVPB, TVPB1), machined light metal (LPB), or brass (MB, MPB). The cylindrical rollers are convexly machined to optimize raceway contact pressure distribution, improving axial load capacity and rigidity. This bearing is suitable for low-speed machinery that needs to withstand unidirectional axial loads, such as crane hooks, vertical water pumps, jacks, oil drilling rigs, and steelmaking equipment. The shaft ring, housing ring, and rolling elements can be installed separately.

Enketo!
(milimetroj) (kiloneŭtonoj)
Lima dimensioj Bazaj ŝarĝtaksoj Minimum Load Factor Ŝafta kodo
d D H r1.2min   unua tago   Tago unu Kalcio Koa A    Nova  Malnova
100 135 25 1 135 102 146 585 0.027 81120 9120
150 38 1.1 150 103 224 830 0.055 81220 9220
170 42 1.5 170 103 300 1370 0.15 89320 9549320
210 50 3 210 103 540 2750 0.61 87420 7549420
210 67 3 210 103 680 2800 0.63 89420 9549420
110 145 25 1 145 112 153 630 0.031 81122 9122
160 38 1.1 160 113 240 915 0.066 81222 9222
190 48 2 190 113 400 1830 0.27 89322 9549322
230 54 3 230 113 640 3200 0.82 87422 7549422
230 73 3 230 113 800 3350 0.90 89422 9549422
120 155 25 1 155 122 160 680 0.036 81124 9124
170 39 1.1 170 123 245 965 0.074 81224 9224
210 54 2.1 210 123 500 2280 0.42 89324 9549324
250 58 4 250 123 765 4000 1.3 87424 7549424
250 78 4 250 123 930 3900 1.2 89424 9549424
130 170 30 1 170 132 183 780 0.048 81126 9126
190 45 1.5 187 133 335 1250 0.13 81226 9226
225 58 2.1 225 134 560 2650 0.56 89326 9549326
270 63 4 270 134 830 4400 1.5 87426 7549426
270 85 4 270 134 1060 4500 1.6 89426 9549426
140 180 31 1 178 142 193 850 0.057 81128 9128
200 46 1.5 197 143 360 1400 0.16 81228 9228
240 60 2.1 240 144 640 3100 0.77 89328 9549328
280 63 4 280 144 880 4800 1.8 87428 7549428
280 85 4 280 144 1100 4800 1.8 89428 9549428
150 190 31 1 188 152 200 900 0.064 81130 9130
215 50 1.5 212 153 465 1900 0.29 81230 9230
150 250 60 2.1 250 154 670 3250 0.85 89330 9549330
300 67 4 300 154 1000 5400 2.3 87430 7549430
300 90 4 300 154 1250 5600 2.5 89430 9549430
160 200 31 1 198 162 204 965 0.074 81132 9132
225 51 1.5 222 163 480 2000 0.32 81232 9232
270 67 3 270 164 780 3800 1.2 89332 9549332
320 73 5 320 164 1160 6400 3.3 87432 7549432
320 95 5 320 164 1430 6400 3.3 89432 9549432
170 215 34 1.1 213 172 260 1180 0.11 81134 9134
240 55 1.5 237 173 540 2280 0.42 81234 9234
280 67 3 280 174 800 4000 1.3 89334 9549334
340 78 5 340 174 1290 7100 4 87434 7549434
340 103 5 340 174 1600 7200 4.1 89434 9549434
180 225 34 1.1 222 183 270 1270 0.13 81136 9136
250 56 1.5 247 183 550 2400 0.46 81236 9236
300 73 5 300 184 1020 5000 2 89336 9549336
360 82 5 360 184 1500 8500 4.1 87436 7549436
360 109 5 360 186 1900 7200 5.8 89436 9549436
190 240 37 1.1 237 193 310 1460 0.17 81138 9138
270 62 2 267 194 695 2900 0.67 81238 9238
320 78 4 320 195 1140 5600 2.5 89338 9549338
380 85 5 380 195 1600 9150 6.7 87438 7549438
200 250 37 1.1 247 203 310 1500 0.18 81140 9140
280 62 2 277 204 720 3100 0.77 81240 9240
340 85 4 340 205 1290 6400 3.3 89340 9549340
400 90 5 400 205 1830 10400 8.7 87440 7549440
220 270 37 1.1 267 223 335 1700 0.23 81144 9144
300 63 2 297 224 750 3350 0.90 81244 9244
220 360 85 4 360 220 1210 5450 4.1 89344 9549344
360 112 4 360 225 2450 8500 5.8 81344 9344
420 112 6 420 225 2320 11200 10 89444 9549444
240 300 45 1.5 297 243 475 2450 0.48 81148 9148
340 78 2.1 335 244 1100 4900 1.9 81248 9248
380 85 4 380 240 1290 6100 5.8 89348 9549348
260 320 45 1.5 317 263 490 2600 0.54 81152 9152
360 79 2.1 355 264 1140 5300 2.2 81252 9252
420 95 1.1 420 260 1670 7700 8.7 89352 9549352
480 132 6 480 265 2850 14300 16 89452 9549452
280 350 53 1.5 347 283 680 3550 1 81156 9156
380 80 2 375 284 1160 5500 2.4 81256 9256
440 95 5 438 282 1800 8650 8.7 89356 9549356
520 190 6 520 286 3900 14600 17 81456 9456
300 380 48 2 377 303 640 3550 1 89160 9549160
380 62 2 376 304 850 4400 1.5 81160 9160
420 95 3 415 304 1530 7200 4.1 81260 9260
480 109 5 480 300 2260 10500 6.7 89360 9549360
320 400 63 2 396 324 880 4650 1.7 81164 9164
440 95 3 435 325 1560 7500 4.5 81264 9264
500 109 5 500 325 2200 10400 6.7 89364 9549364
340 420 64 2 416 344 900 4900 1.9 81168 9168
460 96 3 455 345 1630 8000 5.1 81268 9268
540 122 5 540 345 2790 13300 8.7 89368 9549368
360 440 48 2 437 363 680 4150 1.4 89172 9549172
440 65 2 436 364 900 4900 1.9 81172 9172
500 110 4 495 365 2160 10400 8.7 81272 9272
560 122 5 560 360 2870 14000 8.7 89372 9549372
380 460 48 2 457 383 710 4400 1.5 89176 9549176
380 460 65 2 456 384 930 5300 2.2 81176 9176
520 112 4 515 385 2200 10800 9.3 81276 9276
400 480 48 2 477 403 735 4650 1.7 89180 9549180
480 65 2 476 404 965 5600 2.5 81180 9180
540 112 4 535 405 2240 11200 10 81280 9280
710 185 7.5 710 405 5700 31000 77 89480 9549480
420 500 48 2 497 423 765 4900 1.9 89184 9549184
500 65 2 495 424 980 5850 2.7 81184 9184
580 130 5 575 425 2850 14000 16 81284 9284
440 540 60 2.1 537 443 1040 6400 3.3 89188 9549188
540 80 2.1 535 444 1430 8000 5.1 81188 9188
600 130 5 595 445 2900 14600 17 81288 9288
460 560 60 2.1 557 463 1080 6700 3.6 89192 9549192
560 80 2.1 555 464 1460 8500 5.8 81192 9192
620 130 5 615 465 2700 13400 14 81292 9292
480 580 60 2.1 577 483 1100 6950 3.9 89196 9549196
580 80 2.1 575 484 1460 8650 6 81196 9196
650 135 5 645 485 3350 17000 23 81296 9296
500 600 60 2.1 597 503 1220 8150 5.3 891/500 95491/500
600 80 2.1 595 505 1560 9300 6.9 811/500 91/500
670 135 5 665 505 3400 17600 25 812/500 92/500
530 640 67 3 636 534 1370 8800 6.2 891/530 95491/530
640 85 3 635 535 1730 10600 9 811/530 91/530
710 140 5 705 535 3650 18600 28 812/530 92/530
560 670 67 3 666 564 1370 9150 6.7 891/560 95491/560
670 85 3 665 565 1760 11100 9.7 811/560 91/560
750 150 5 745 565 3800 20000 32 812/560 92/560
600 710 67 3 706 604 1430 9650 7.4 891/600 95491/600
600 710 85 3 705 605 1800 11600 11 811/600 91/600
800 160 5 795 605 4400 24000 46 812/600 92/600
630 750 73 3 746 634 1630 11200 10 891/630 95491/630
750 95 3 746 634 2160 13700 15 811/630 91/630
850 175 6 842 638 4800 26000 54 812/630 92/630
670 800 78 4 795 675 2000 13400 14 891/670 95491/670
800 105 4 795 675 2550 16300 21 811/670 91/670
900 180 6 892 678 5700 30500 74 812/670 92/670
710 850 85 4 845 715 2200 15000 18 891/710 95491/710
850 112 4 845 715 2900 18300 27 811/710 91/710
950 190 6 942 718 5850 32000 82 812/710 92/710
750 900 90 4 895 755 2400 16600 22 891/750 95491/750
900 120 4 895 755 3250 21200 36 811/750 91/750
1000 195 6 992 758 6550 36000 100 812/750 92/750
800 950 90 4 945 805 2500 18000 26 891/800 95491/800
950 120 4 945 805 3450 22000 39 811/800 91/800
1060 205 7.5 1050 810 7350 40500 130 812/800 92/800
850 1000 90 4 995 955 2600 19000 29 891/850 95491/850
1000 120 4 995 855 3450 23200 43 811/850 91/850
1120 212 7.5 1110 860 8150 45500 170 812/850 92/850
900 1060 95 5 1055 905 3050 22000 39 891/900 95491/900
1060 130 5 1054 906 4000 27000 58 811/900 91/900
1180 220 7.5 1170 910 8500 49000 190 812/900 92/900
950 1120 103 5 1115 955 3450 25000 50 891/950 95491/950
1120 135 5 1114 956 4400 30000 72 811/950 91/950
1250 236 7.5 1240 960 10000 58500 270 812/950 92/950
1000 1090 70 2.1 1090 1003.5 1830 15300 19 810/1000 90/1000
1180 109 5 1175 1005 3900 28500 65 891/1000 95491/1000
1000 1180 140 5 1174 1006 4750 32500 84 811/1000 91/1000
1320 250 9.5 1308 1012 10200 60000 290 812/1000 92/1000
1060 1250 115 5 1245 1065 4150 31000 77 891/1060 95491/1060
1250 150 5 1244 1066 5300 36500 110 811/1060 91/1060
1400 265 9.5 1388 1972 12000 71000 400 812/1060 92/1060
1120 1320 122 5 1315 1125 4900 36500 110 891/1120 95491/1120
1320 160 5 1314 1126 6000 41500 140 811/1120 91/1120
